Power Oxidizer 2 MW (KG2-3GEF/PO) Powerstation
About The Power Oxidizer 2 MW (KG2-3GEF/PO) Powerstation

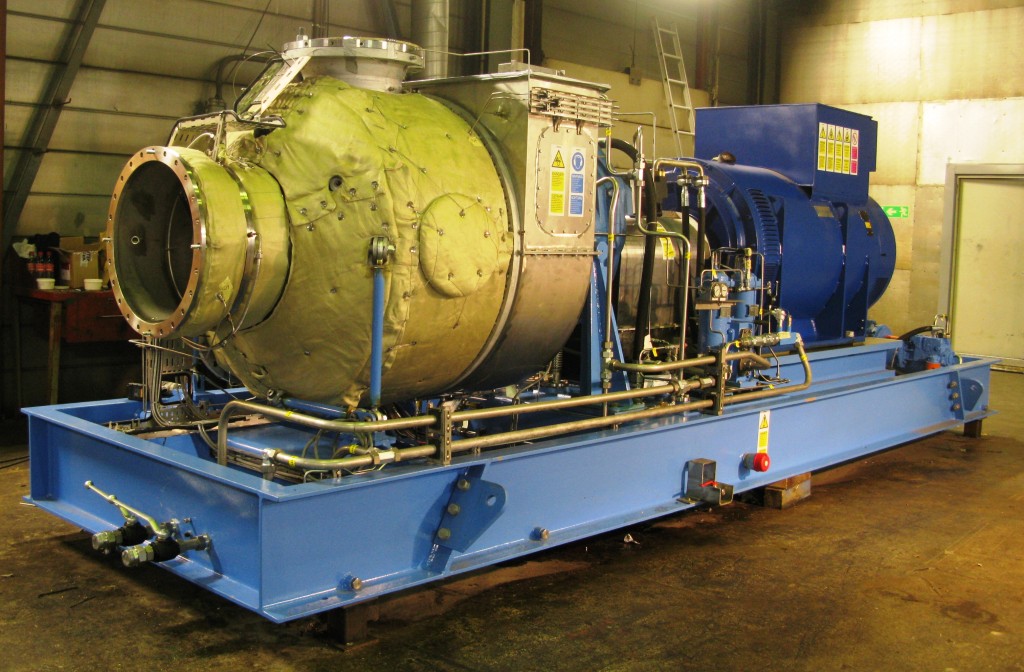

The Dresser-Rand Power Oxidizer 2 MW (KG2-3GEF/PO) Powerstation’s gas turbine with Ener-Core Power Oxidizer technology is the only clean power generation that runs directly on lowpressure, low-quality gases that otherwise could not be used. The system integrates oxidation technology with the field proven 2MW-KG2-3G gas turbine, to efficiently generate electricity with near-zero emissions. The Power Oxidizer 2 MW (KG2-3GEF/PO) Powerstation’s gas turbine’s wide fuel range enables operation on extremely low-grade or waste fuels, landfill gas, biogas, coal gas, and associated petroleum gas. Its ability to maintain near-zero emissions excels in regulated air quality markets without additional emissions controls. The Dresser-Rand KG2-3G gas turbine is the preferred solution for clean power requirements from 1 to 12 MW with nearly 1,000 installed units with more than 25 million operating hours.
Features And Benefits Of The Power Oxidizer 2 MW (KG2-3GEF/PO) Powerstation
- Class-leading fuel efficiency.
- High effectiveness recuperator.
- Wide fuel spec tolerance.
- Ultra-low NOx emissions, < 1 ppmv.
- No catalyst or chemicals used.
- H2S acceptance.
- Siloxane tolerant.
Click Here For Ener-Core Power Oxidizer 2 MW (KG2-3GEF/PO) Powerstation Product Info Sheet
| Fuel Operating Range (HHV) - Aspirated Configuration | 25 - 2,600 Btu/scf (0.93 - 97 MJ/m3) |
| Fuel Operating Range (HHV) - Direct Inject Configuration | 350 - 2,600 Btu/scf (13 - 97 MJ/m3) |
| Nominal Electrical Output | 1,850 kW (±30kW) |
| Nominal Heat Rate (LHV) | 9,750 Btu/kWh (10,286 kJ/kWh) |
| Electrical Efficiency (LHV) (±2) | 35% (±2) |
| System Footprint | 105,000 lb (47,627 kg) |
| NOx Emissions - Aspirated Configuration | |
| NOx Emissions - Direct Inject Configuration |
